Dynamic Trainer / Pro Layout

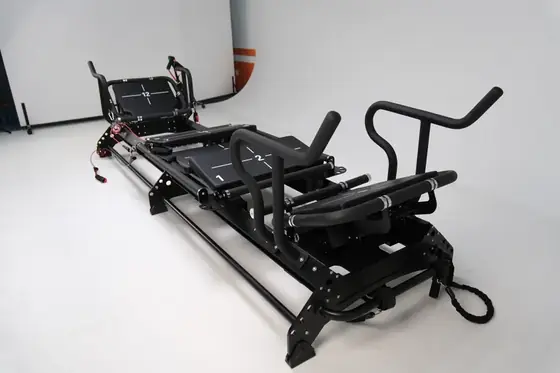

Pro Dynamic Pilates Trainer
The Pro Dynamic Pilates Trainer is an extended aluminum-frame station with a moving carriage, fixed end platforms and elevated handle positions. Its longer frame distinguishes it from the conventional reformers in the catalogue. The separate working zones support changes between hand and foot positions during instructor-led dynamic sessions. Buyers should allow exercise clearance around both ends and assess handling and studio access before choosing this layout. The Specifications table separates carriage and end-platform dimensions, identifies the handle heights, and lists both export packages for transport planning.
- Extended aluminum frame
- Moving carriage
- Fixed end platforms
- Elevated handles
View specifications · Warranty & after-sales support
Configuration to Confirm
Confirm with your quotation
- 3220 mm Pro Dynamic configuration
- Front and rear platforms, carriage and handle configuration

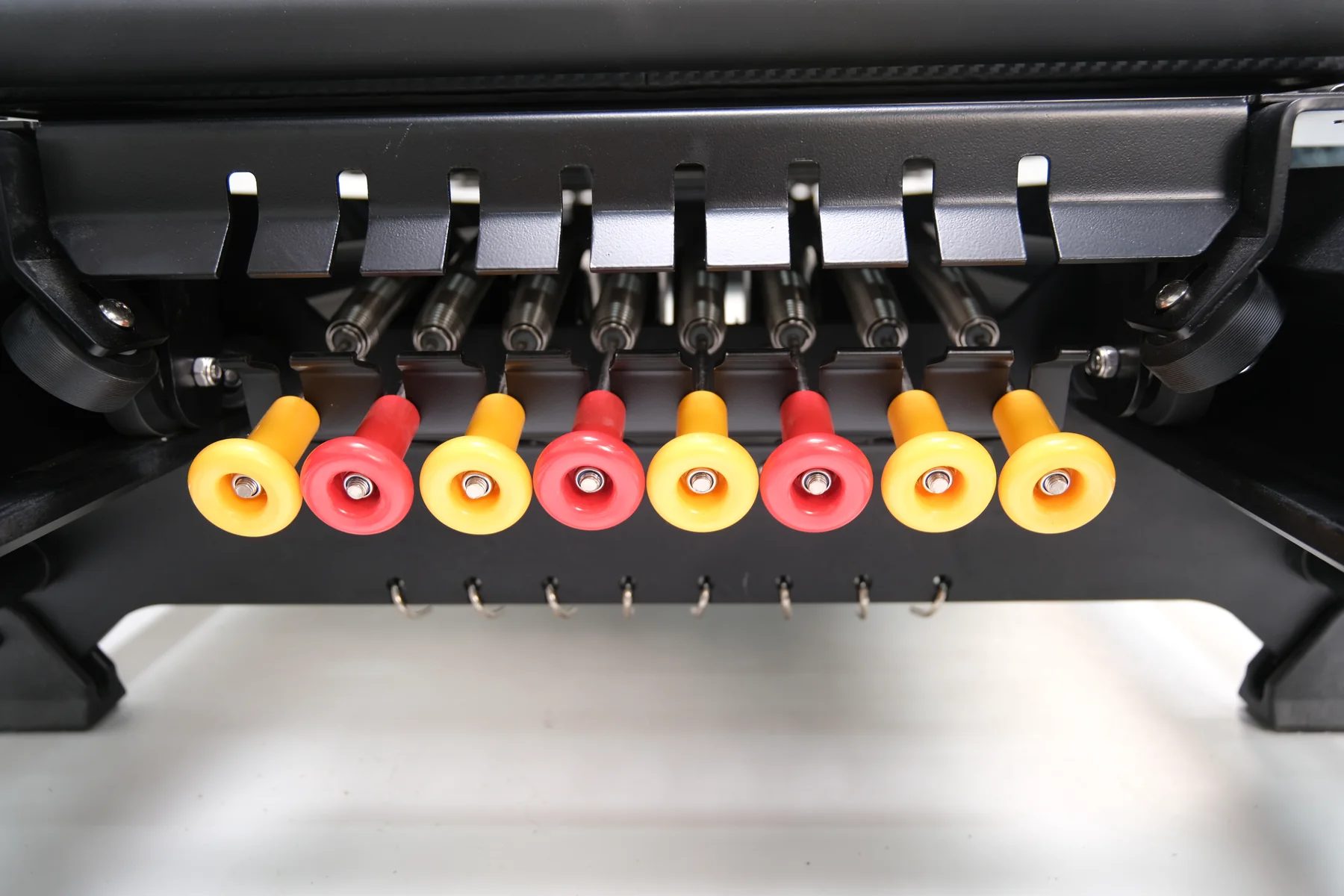

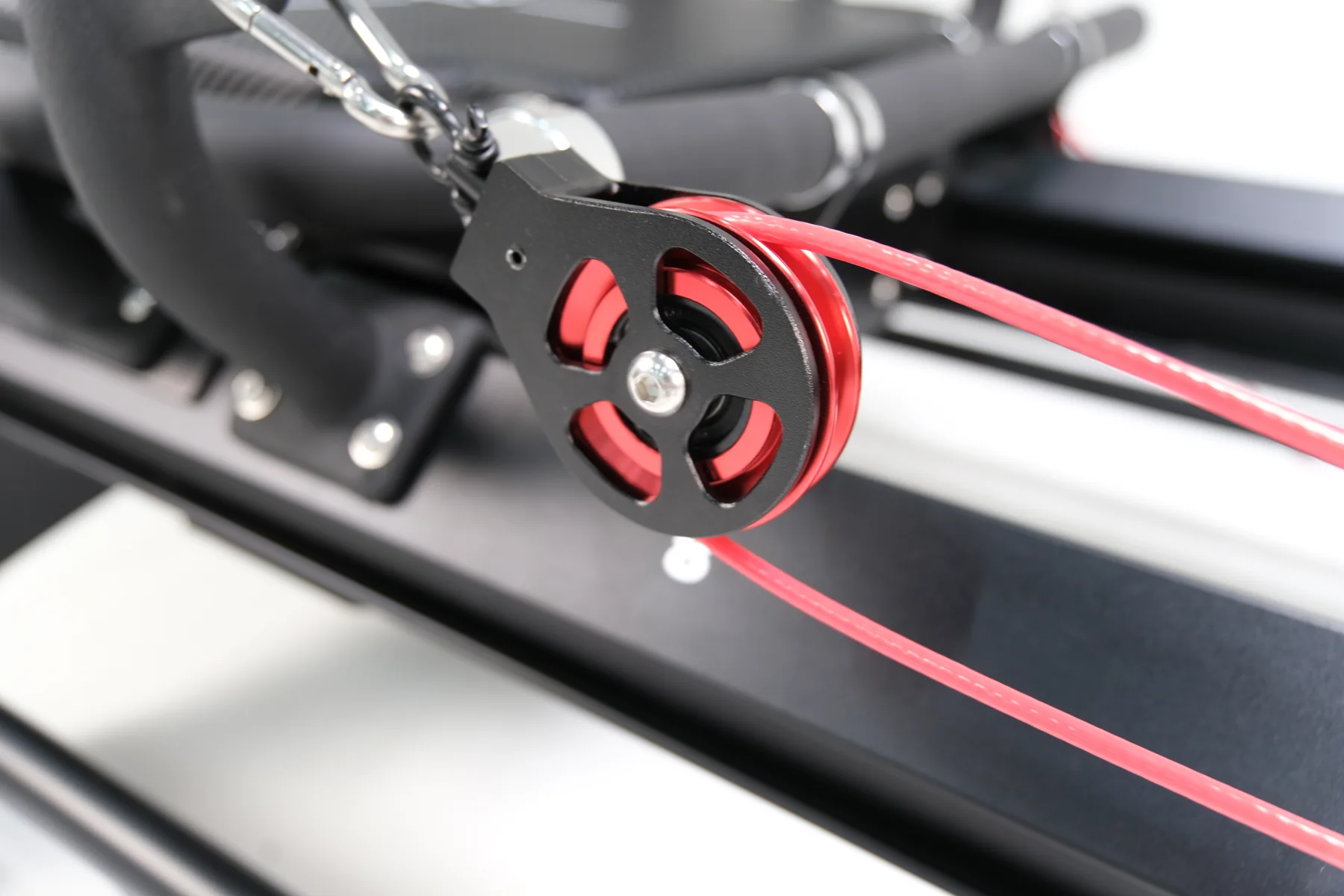

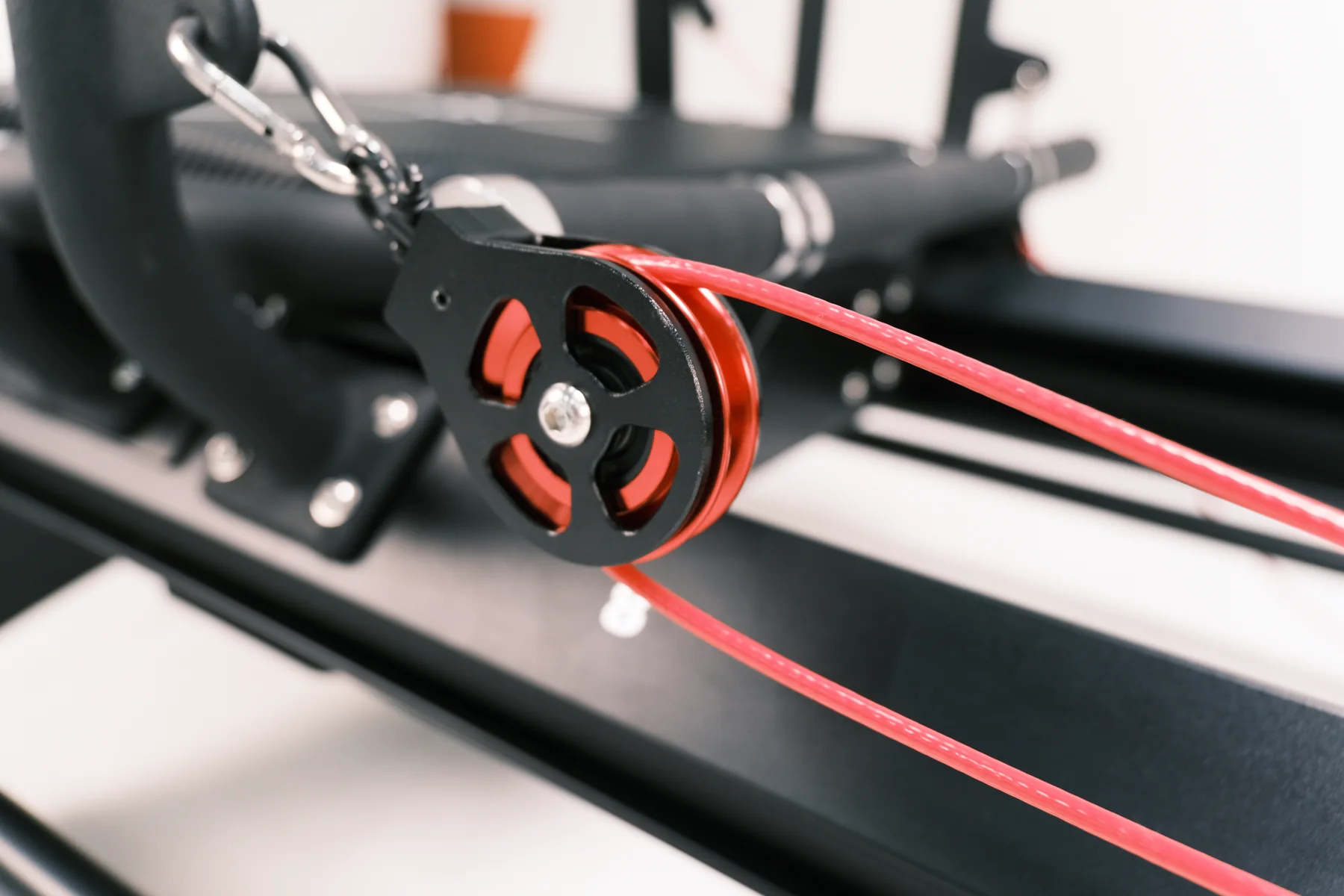

- Spring set, cables and straps: confirm counts and resistance options
- Confirm the complete hardware and two-package packing list
Agree the supplied items, optional accessories and quantities in the quotation and packing list. Product photos show configurations and do not define standard inclusions.
Packaging & Shipping
Packing arrangements are confirmed for the selected configuration. Shipping quotations depend on destination and order quantity; final package count and delivery arrangements are confirmed before dispatch. Package dimensions and weights are listed in the Specifications table.
OEM / ODM Options
OEM/ODM options for frame finish, upholstery, branding and packing can be reviewed based on the model, quantity and project requirements.
Color & Upholstery Customization
Multiple upholstery colors are available for selected models and OEM/ODM projects. Final availability depends on the product, material, quantity and production requirements.

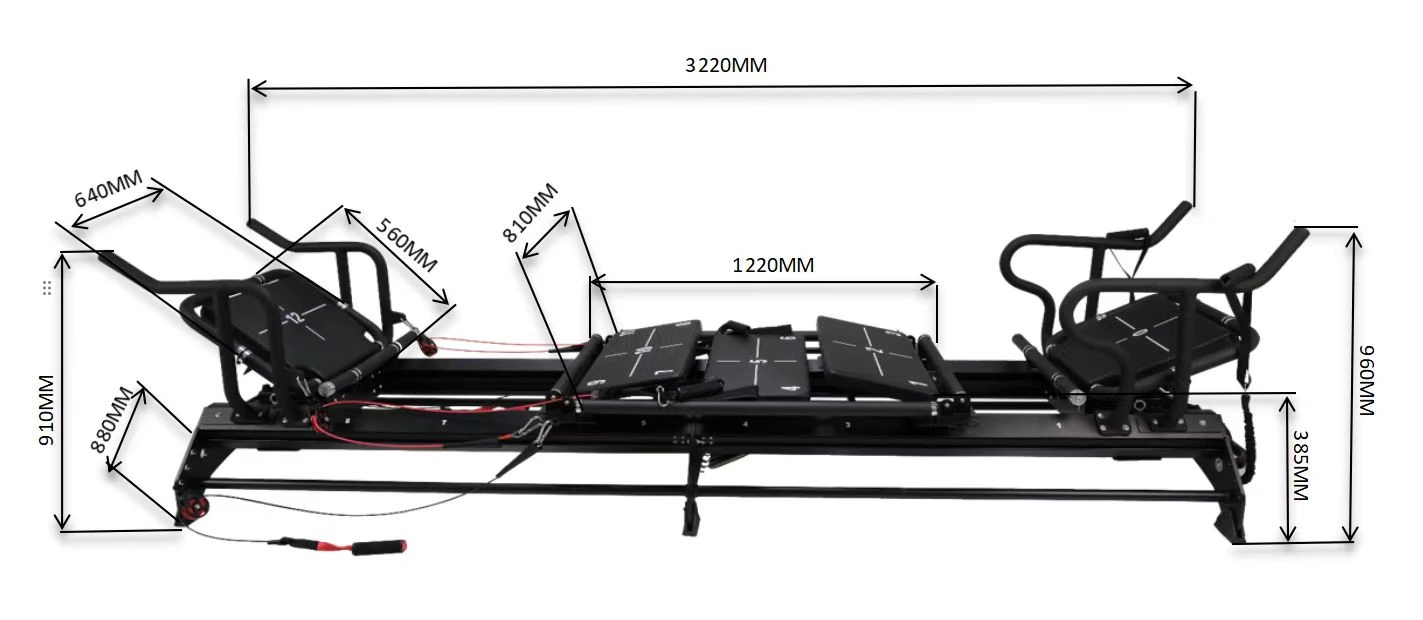

Product specifications
Specifications
Specifications shown are based on the current configuration. Final dimensions, packing and optional items are confirmed before production.
| Frame Material | Aluminum frame |
|---|---|
| Product Dimensions | 3220 mm overall length |
| Base width | 880 mm |
| Platform height | 385 mm |
| Maximum handle height | 960 mm |
| Net weight | 170 kg |
| Gross weight | 230 kg total |
| Total packing volume (two packages) | Approx. 1.74 m³ (0.91 + 0.83 m³) |
| Carriage dimensions | 1220 × 810 mm |
| End platform dimensions | 640 × 560 mm |
| End handle heights | 910 / 960 mm |
| Package 1 size | 1820 × 910 × 550 mm |
| Package 2 size | 1650 × 910 × 550 mm |
Model construction and use
Materials & Construction

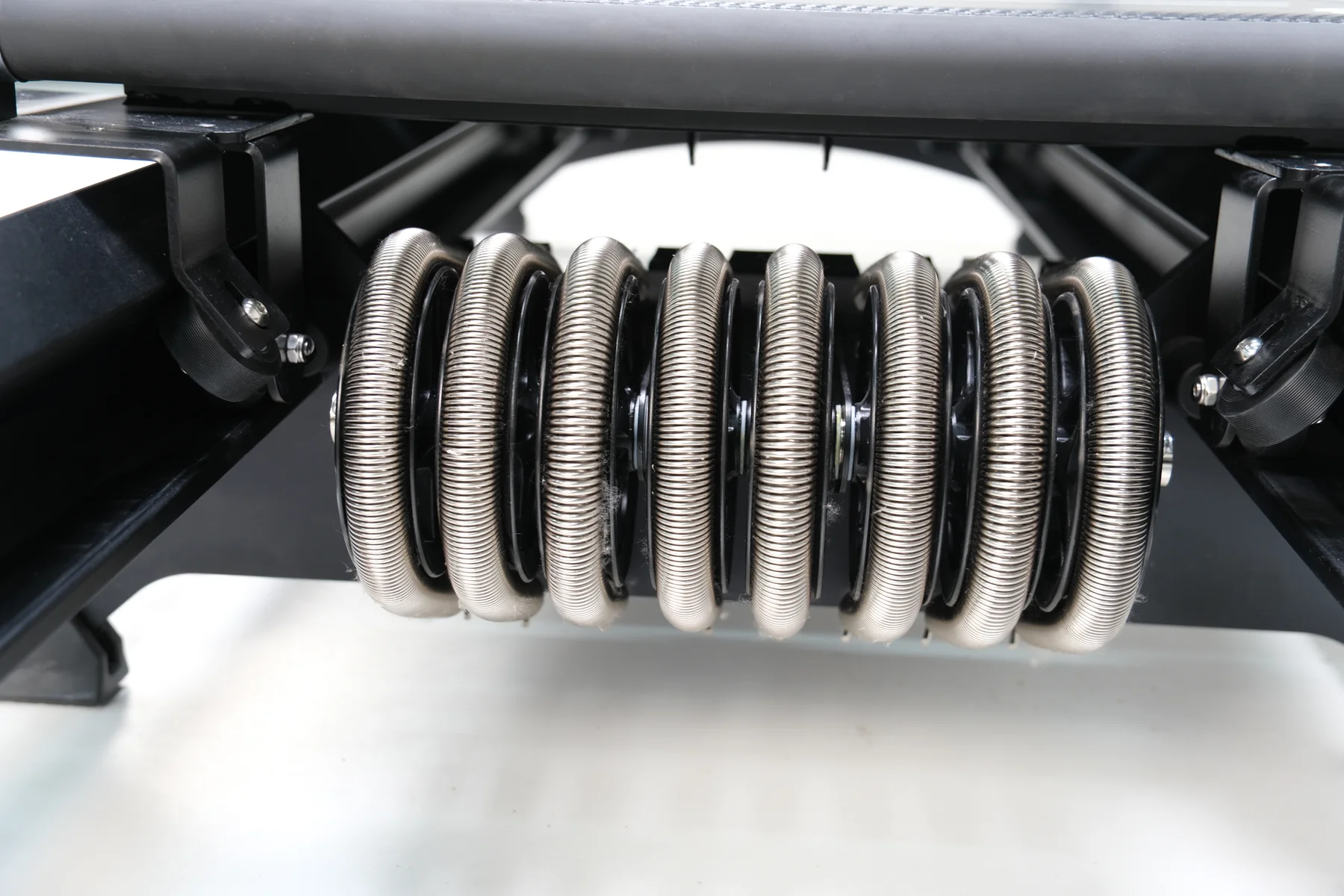

An aluminum frame carries the extended moving platform and fixed end working zones. Spring resistance and elevated handles form part of the configuration.
Best For
Instructor-led dynamic training studios; commercial buyers planning extended carriage stations with space at both ends for exercise transitions.
Customization
Discuss frame finish, padded surfaces, logo and accessory requirements for the Pro layout. Confirm both package dimensions and packing scope for delivery.
Warranty & After-sales Support
Frame: 5 years; springs: 3 years; accessories: 1 year. Contact our sales team with the model and issue details for after-sales assistance.
